GOM presents easy-to-use, yet powerful 3D scanner

The new GOM Scan 1 sensor is a compact and mobile 3D scanner to digitally capture objects and achieve precise 3D meshes for applications such as 3D printing, reverse engineering and dimensional inspection. The system comes with the latest GOM software, walking users through the entire workflow.

Reading time: min

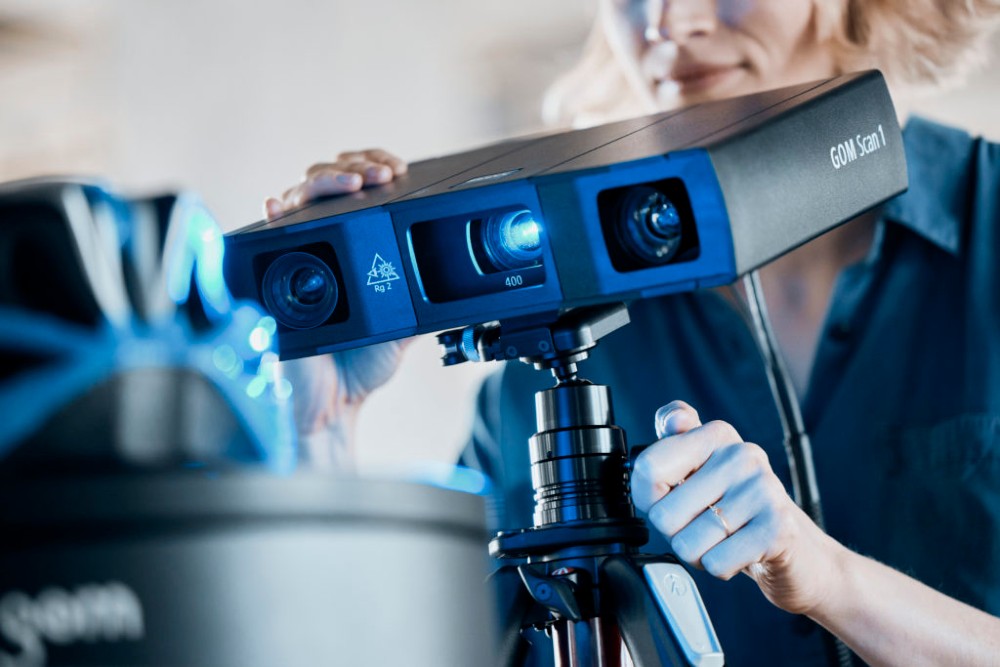

GOM Scan 1: The Next Small Thing

The new GOM Scan 1 sensor is a compact and mobile 3D scanner to digitally capture objects and achieve precise 3D meshes for applications such as 3D printing, reverse engineering and dimensional inspection. The system comes with the latest GOM software, walking users through the entire workflow.
GOM Scan 1 features a compact shape filled with advanced technologies. From GOM’s fringe projection technology to the stereo camera principle, this sensor is built to deliver 3D data with high precision. The lightweight system is a specialist for simple and quick measurements of small and medium-sized parts – even in confined spaces. The preinstalled GOM Inspect software takes meshes to the next level, supporting users to get 3D data easily and fast. For different applications, GOM Scan 1 is available with three measuring volumes: 100, 200 and 400 mm field of view.

Ready to print with intelligent mesh editing
GOM Scan 1 operates with GOM Inspect, the well-established standard in 3D metrology, and supports tasks such as 3D printing, 3D visualization and reverse engineering. It captures high-quality data in a short amount of time while the powerful mesh editing functions make it easy to reproduce parts, create precise 3D models or develop new products. The software functions enable users, for example, to smooth, thin and refine polygon meshes, fill holes or extract curvature lines, achieving very accurate meshes that can be saved in many common formats. The smart polygonization function creates meshes with highest detail while keeping the mesh size easy to handle.


A precise fringe projection scanner with true benefits
GOM Scan 1 is an optical 3D fringe projection scanner with Blue Light Technology. It captures the complete surface of components with narrowband blue light – recorded by two cameras that work based on GOM’s stereo camera principle. The powerful light source enables short measuring times and filters out interfering ambient light during image acquisition.
Thanks to the stereo camera principle, the sensor recognizes changing ambient conditions during operation and can compensate for these changes. To ensure the quality of the measuring data, the software of the sensor continuously monitors the calibration status, the transformation accuracy, environmental changes and part movements.

A system to support the entire workflow
GOM Scan 1 with GOM Inspect delivers accurate and comprehensive measurement results making 3D part inspection effortless. With the software, users can easily import and align CAD and mesh files, create surface comparisons or dimensional inspections and generate reports.
GOM Scan 1 will be available worldwide through both the GOM global metrology network as well as the #HandsOnMetrology platform, a joint portfolio of 3D scanning solutions by GOM and ZEISS.

More information:  https://www.gom.com/goto/3fxg

About GOM
GOM, a company of the ZEISS Group, specializes in industrial 3D coordinate measuring technology, 3D computed tomography and 3D testing. From product development to production and worldwide distribution, GOM offers machines and systems for manual and automated 3D digitizing, evaluation software, training and professional support from a single source. In industries such as automotive, aerospace, energy and consumer goods, more than 17,000 GOM system installations are in use internationally. At more than 60 locations and with more than 1,200 metrology specialists, GOM guarantees profound advice and first-class service. Since mid-2019, GOM has been a part of the ZEISS Group and has formed the Center of Excellence for optical metrology. With more than 32,000 employees in 50 countries and annual revenue totaling more than 6.3 billion euros, ZEISS is an internationally leading technology enterprise operating in the fields of optics and optoelectronics (status: September 30, 2020).

About #HandsOnMetrology
#HandsOnMetrology is a new global 3D scanning network and provides a digital go-to for everything you always wanted to know about 3D scanning on the platform HandsOnMetrology.com. The platform is operated by GOM, a ZEISS company, that sets new standards in optical 3D metrology. From step-by-step setup instructions to more advanced tutorials and expert hacks: the platform is made for learning and for getting inspired. It gives users all the information they need to deliver 3D scanning excellence. HandsOnMetrology.com supports the community of designers, technicians, engineers, scientists and specialists with valuable knowledge to increase product quality, optimize processes and expand possibilities.
