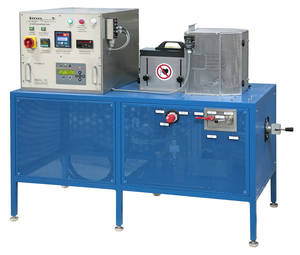

Linn High Therm | Induction heated crucible furnace with vacuum and protective gas

Tmax 2300 °C

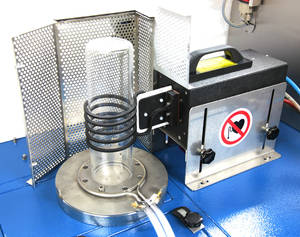

High frequency crucible furnace with vacuum for induction melting of metals and metal alloys, for heat treatment and for sintering of oxide ceramics and powder metals. Operation with and without vacuum possible. It is possible to use different coils for the application, which are individually height-adjustable, to ensure a high flexibility for the application processes. Control unit for automatically control of heat power, gas flow and to regulate the temperature.

Temperature: approx. 2300 °C (depending on susceptors and isolation).

Effective chamber volume: quartz glass with an inner diameter of 84 mm x 300 heated length.

Max. inductive power: approx. 6 kW.

Atmosphere: nitrogen and argon.

Vacuum: 2x10-5 mbar.


See us at  GIFA
Hall 10 / B66

also available in








Click here for further Information and Contact to Linn High Therm GmbH in our Suppliers Profile
